Description
- Brand Name: NONE
- Origin: Mainland China
- High-concerned chemical: None
- Battery Type: LiFePo4 or Lithium
- Model Number: HP1500K
- Brand Name: Lithtech
- Place of Origin: Guangdong, China
- System Voltage: 51.2 V
- Output Power Range: 5-20KW
- Dimension (L*W*H): 482*535*225mm
- Weight: 82KG
- System Type: Rack-mounted
- Communication Port: CAN, RS-232, Rs485, Wifi, Bluetooth
- Protection Class: IP67

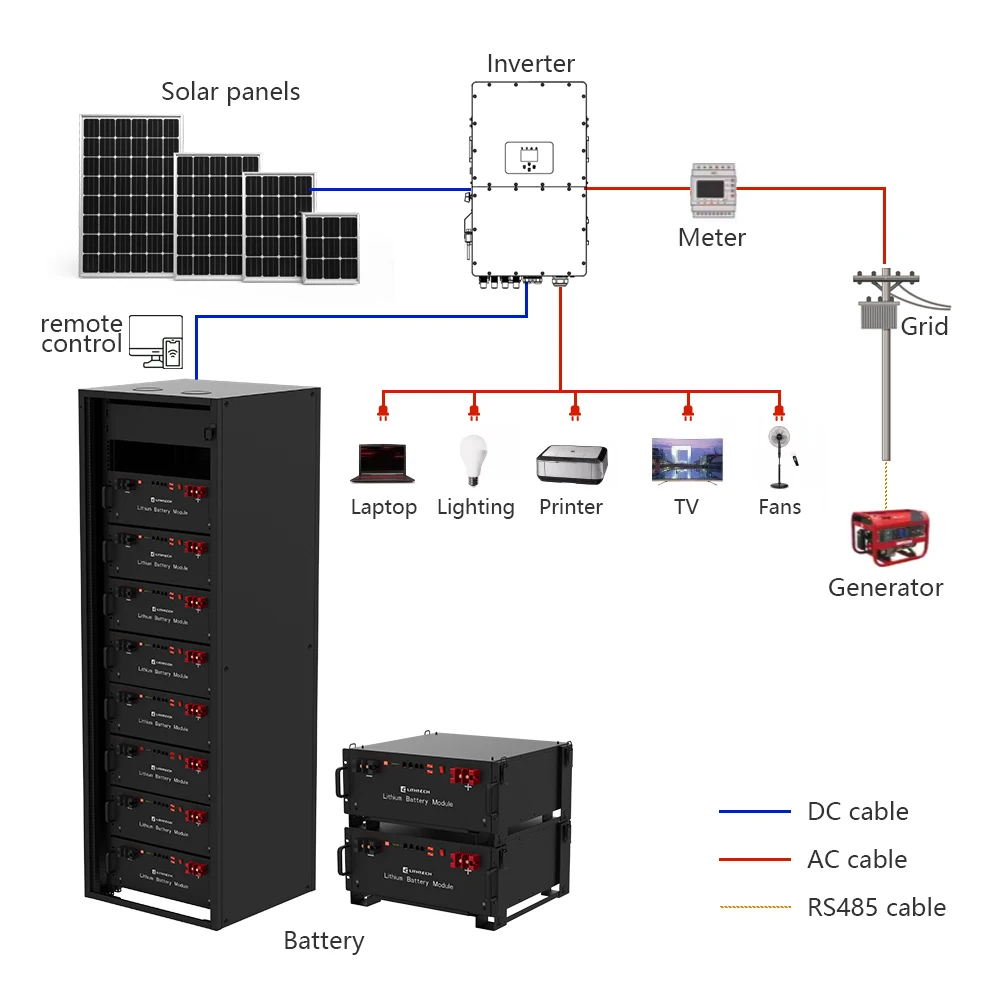

- Grid connection: Off grid, Hybrid grid, on grid
- Certificate: CE/RoHS/UN38.3/MSDS/IEC62619 / uI
- Warranty: 10 Year
- Voltage: 48V 51.2V
- Cycle life: 8000+ Times
- capacity: 100ah 200Ah 300Ah 314Ah or customize
- Application: Home Appliances / Solar Energy Storage Systems / USP / other
- Battery type: LiFePO4, NMC
- BMS: Built-in BMS Protection
- Inverter Matched: Deye Growatt LUXPOWER MEGAREVO Victron SMA and othe
- OEM/ODM: Yes(Accepted)
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:444.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:444.75px}#detail_decorate_root .magic-3{overflow:hidden;width:750px;height:823.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-4{margin-top:0;margin-left:1px;width:750px;height:823.5px}#detail_decorate_root .magic-5{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#000;background-color:#f0f8ff;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-6{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-8{overflow:hidden;width:750px;height:696px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:0;width:750px;height:696px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:700.6329113924052px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750.0000000000001px;height:700.6329113924052px}#detail_decorate_root .magic-12{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-13{font-size:18px}#detail_decorate_root .magic-14{font-size:16px}#detail_decorate_root .magic-15{width:446px}#detail_decorate_root .magic-16{overflow:hidden;width:446px;height:446px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:446px;height:446px}#detail_decorate_root .magic-18{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-19{margin-bottom:0}#detail_decorate_root .magic-20{position:relative;width:100%}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:770px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:-146px;margin-left:-2px;width:750px;height:937.5px}#detail_decorate_root .magic-23{width:750px;border-collapse:collapse}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:140px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-25{text-align:center}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;width:123px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:129px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:115px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:116px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:28px;padding:5px 10px;width:144px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-31{font-size:12px}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:171px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-33{min-height:28px;padding:5px 10px;width:166px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-34{min-height:28px;padding:5px 10px;width:167px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-35{min-height:28px;padding:5px 10px;width:545px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-36{font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-37{display:none}#detail_decorate_root .magic-38{min-height:28px;padding:5px 10px;width:168px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-39{min-height:28px;padding:5px 10px;width:144.234px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-40{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:661.8942731277533px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:750px;height:661.8942731277533px}#detail_decorate_root .magic-43{overflow:hidden;width:750px;height:502.2151898734178px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-44{margin-top:0;margin-left:0;width:750.0000000000001px;height:502.2151898734178px}#detail_decorate_root .magic-45{overflow:hidden;width:750px;height:603.7974683544304px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:750.0000000000001px;height:603.7974683544304px}#detail_decorate_root .magic-47{overflow:hidden;width:750px;height:594.2857142857142px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:750px;height:594.2857142857142px}#detail_decorate_root .magic-49{overflow:hidden;width:750px;height:330px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-50{margin-top:-6px;margin-left:0;width:750px;height:634px}#detail_decorate_root .magic-51{overflow:hidden;width:750px;height:510.7594936708861px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-52{margin-top:0;margin-left:0;width:750.0000000000001px;height:510.7594936708861px}#detail_decorate_root .magic-53{overflow:hidden;width:750px;height:516.4556962025317px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-54{margin-top:0;margin-left:0;width:750.0000000000001px;height:516.4556962025317px}#detail_decorate_root .magic-55{overflow:hidden;width:750px;height:955px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-56{margin-top:-32px;margin-left:-1px;width:750.0000000000001px;height:988.2911392405064px}#detail_decorate_root .magic-57{min-height:28px;padding:5px 10px;width:134px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-58{min-height:28px;padding:5px 10px;width:119px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-59{min-height:28px;padding:5px 10px;width:122px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-60{min-height:28px;padding:5px 10px;width:135px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-61{vertical-align:top}#detail_decorate_root .magic-62{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-63{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-64{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-65{font-size:22px}#detail_decorate_root .magic-66{overflow:hidden;width:750px;height:719px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-67{margin-top:-66px;margin-left:-1px;width:750.0000000000001px;height:845.8860759493672px}
Products Description

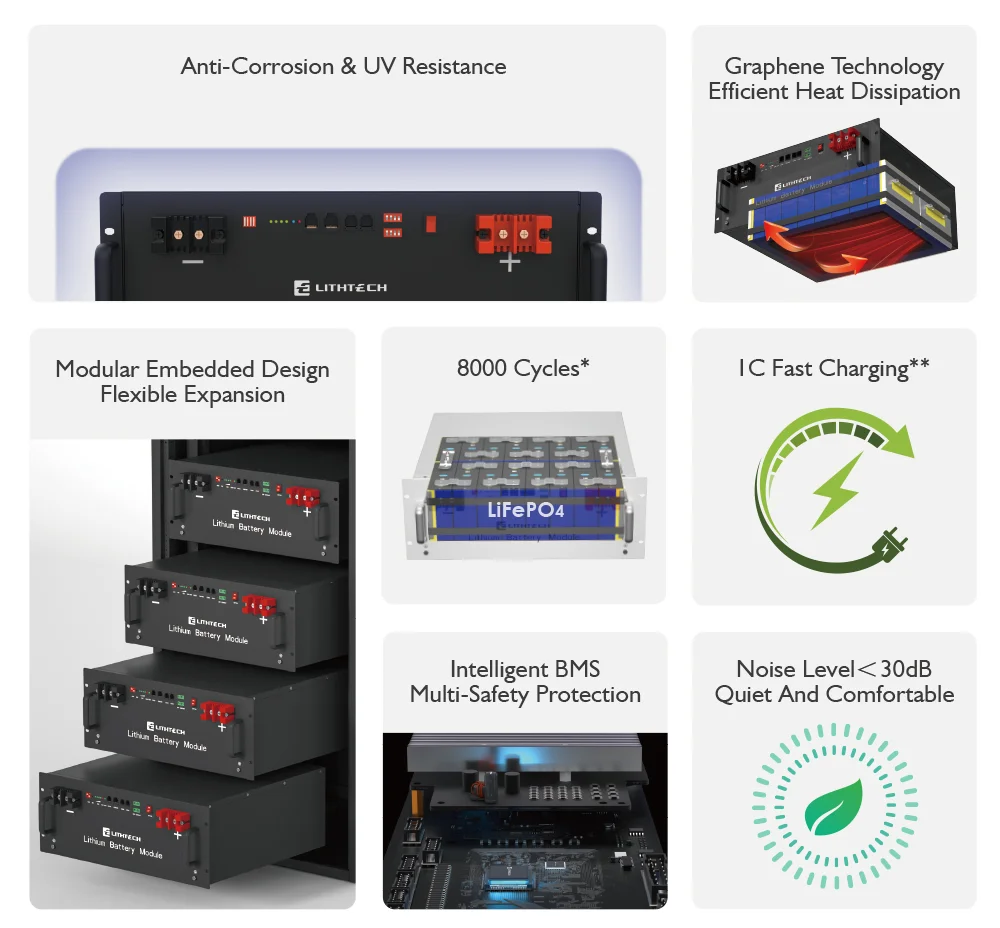

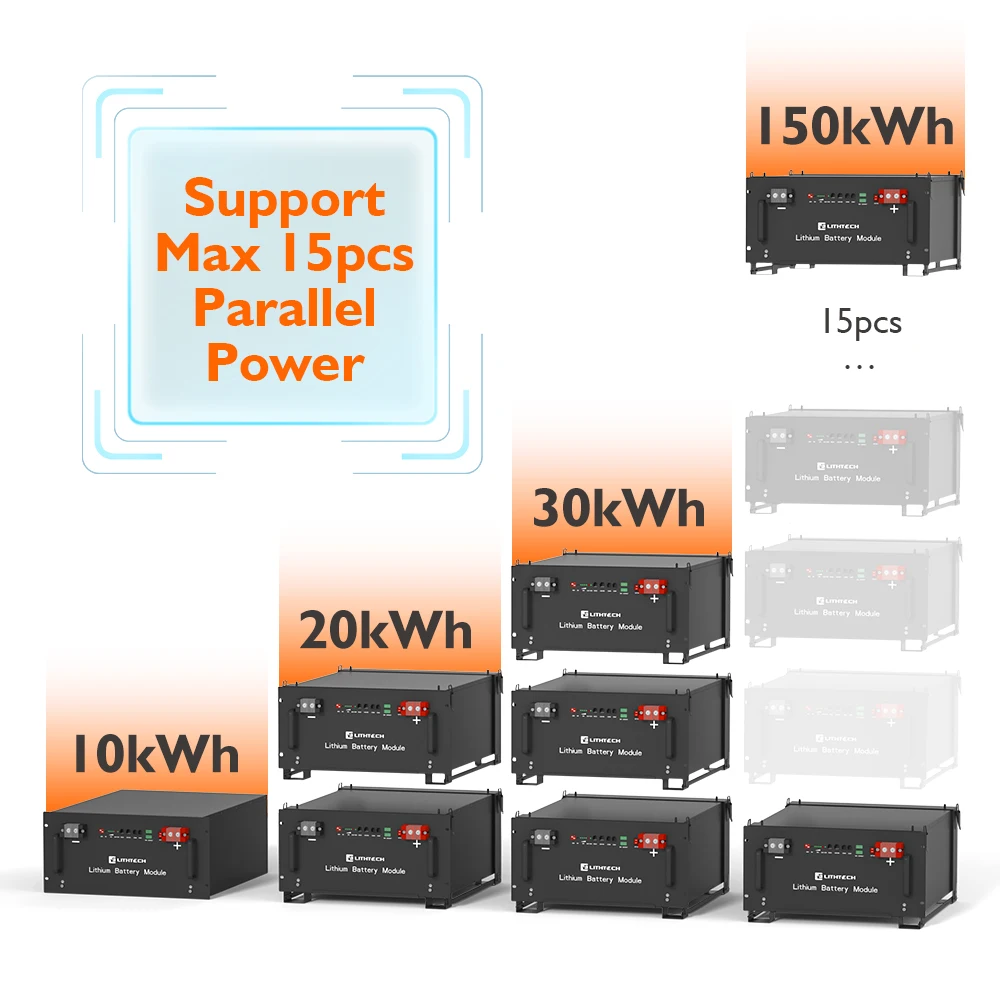

Max 15PCS In Parallel
Up to 15pcs can be connected in parallel add/remove batteries online without going offline. It can meet the requirements of
redundant system design, and the failure of a single module will not affect others, achieving ultra-high online rate. (except
module No. 1)
redundant system design, and the failure of a single module will not affect others, achieving ultra-high online rate. (except
module No. 1)

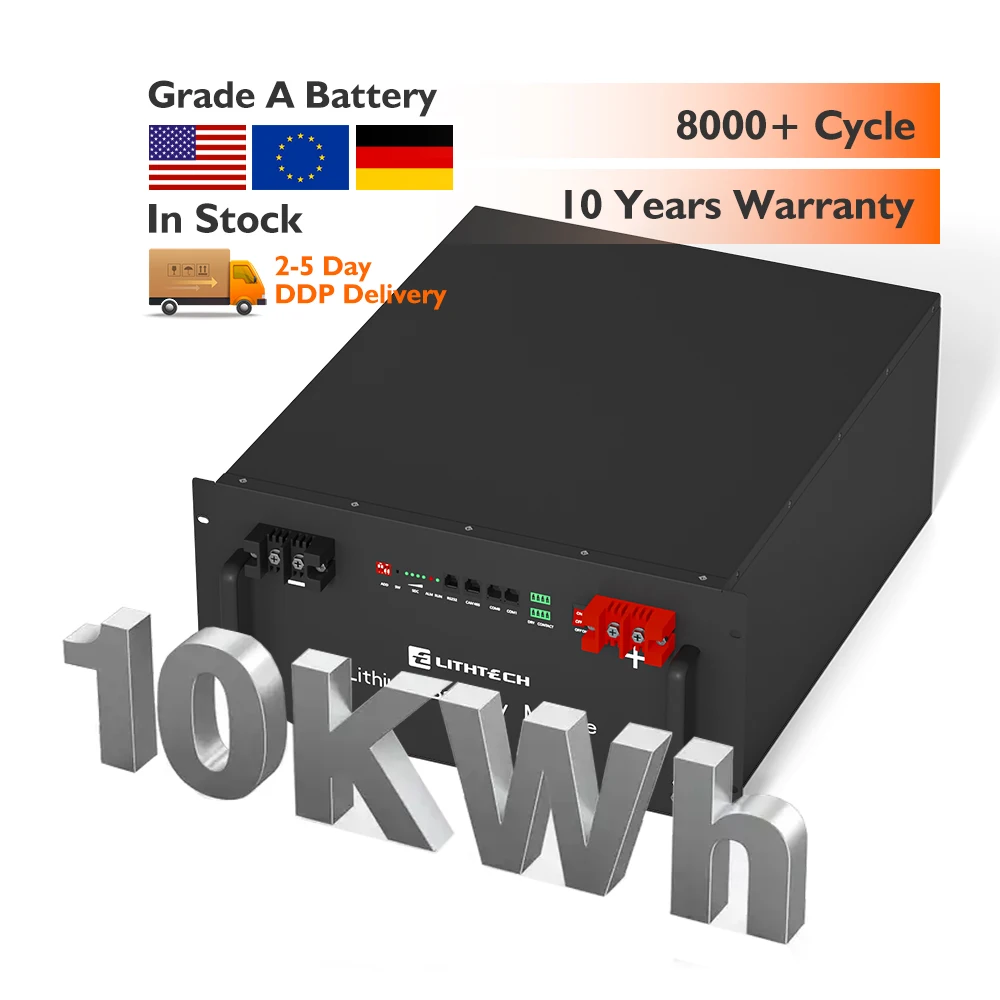

10KWh supports 15pcs capacity up to 150kWh
Delivery Time
|
Item
|
1-30PCS
|
10-100pcs
|
1000+pcs
|
10000+pcs
|
|
Need
Dangerous Goods Transport Certificate
|
10days
|
10-15days
|
20days
|
30days
|
|
Not Need
Dangerous Goods Transport Certificate
|
7days
|
7-15days
|
15-20days
|
30days
|

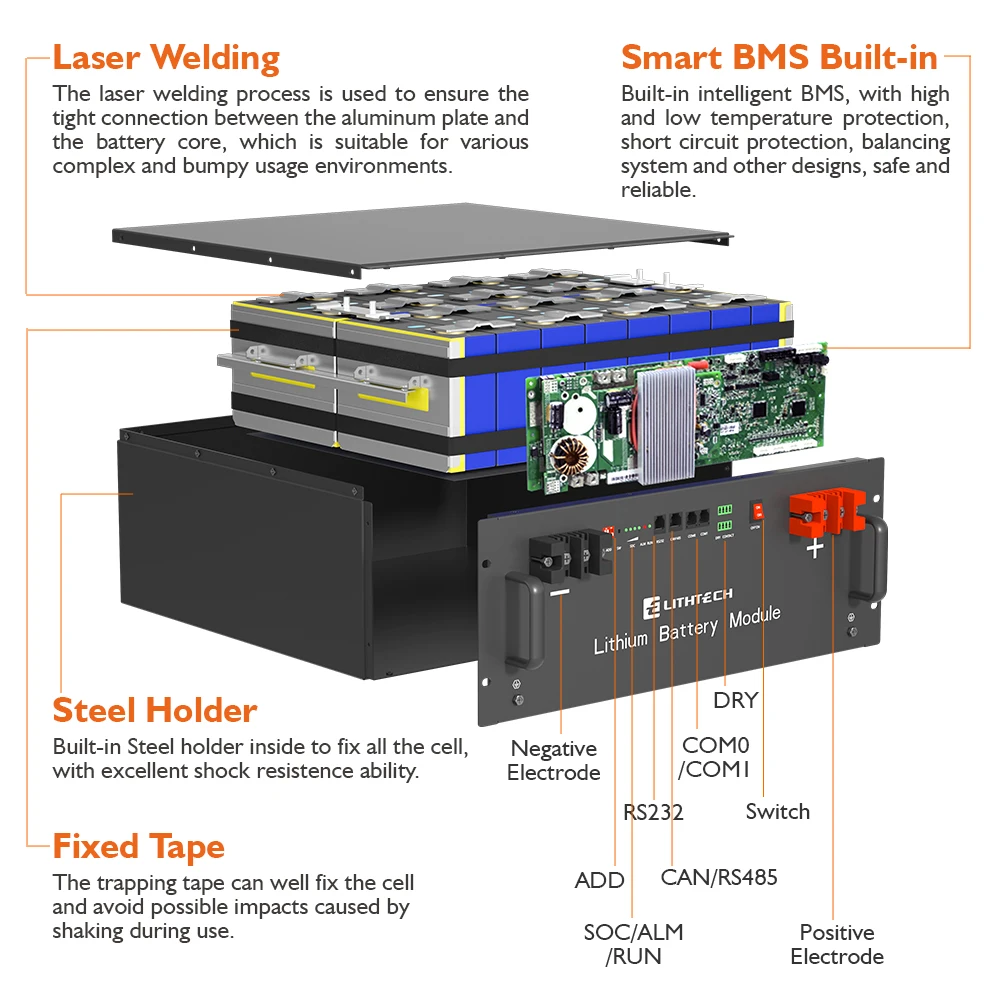

Battery Functions
|

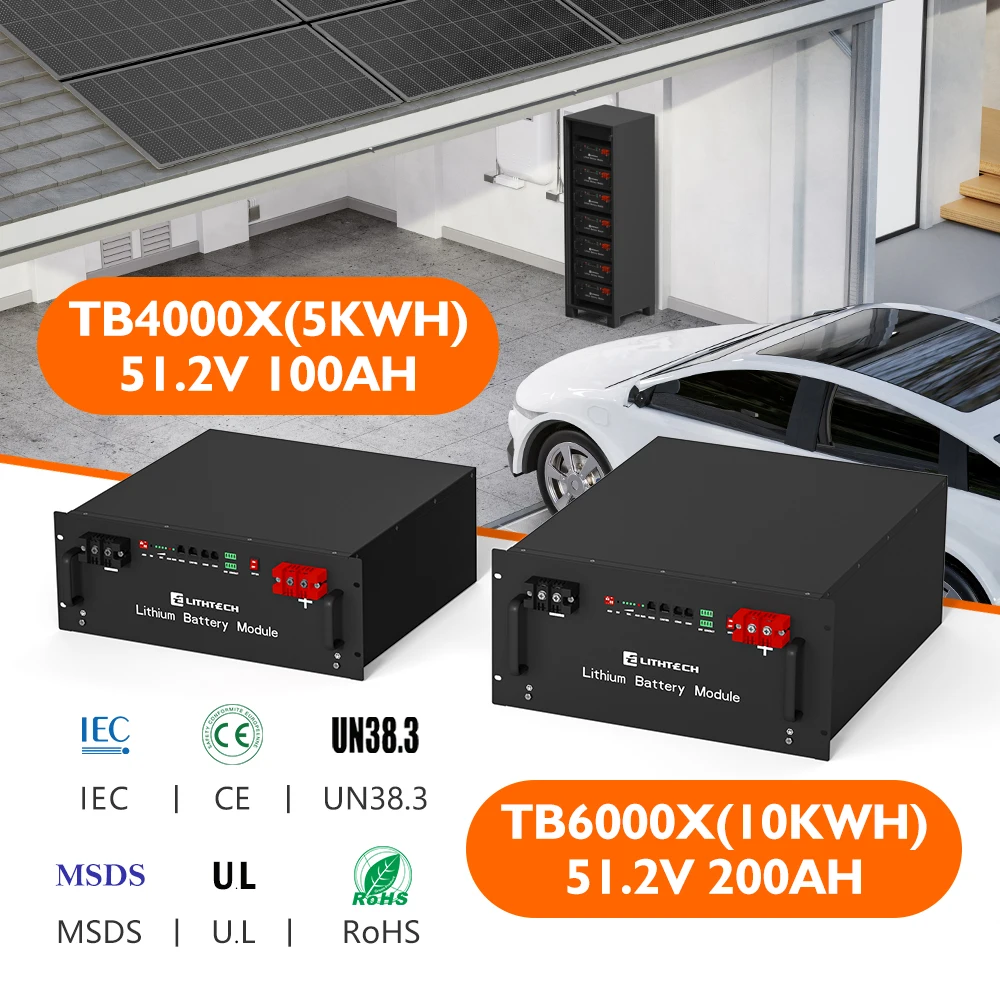

Model No
|
TB4000X
|
TB6000X
|
customization
|
||
|
Voltage
|
48 V/51.2V
|
48 V/51.2V
|
48 V/51.2V
|
||
|
Capacity
|
100Ah
|
200Ah
|
314Ah
|
||
|
Energy
|
5.12KWH
|
10.24KWH
|
16.08KWH
|
||
|
Operation voltage
|
37.6-58.4Vdc
|
37.6-58.4Vdc
|
37.6-58.4Vdc
|
||
|
Max.charging voltage
|
58.4 Vdc
|
58.4 Vdc
|
58.4 Vdc
|
||
|
Max.charging and discharging current
|
100A
|
100A
|
100A
|
||
|
Max Power
|
5120W
|
10240W
|
16076W
|
||
|
Life time(25°C)
|
10 years
|
|
|
||
|
Life cycles(25°C)
|
8000+ Cycles
|
|
|
||
|
Communication
|
RS485, Ethemet, CAN
|
|
|
||
|
Storage time / temperature
|
5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
|
|
|
||
|
Operation temperature
|
-20°C to 60°C @60+/-25% Relative Humidity
|
|
|
||
|
Storage temperature
|
0°C to 45°C @60+/-25% Relative Humidity
|
|
|
||
|
Lithium Battery Standard
|
UL1973 IEC62619 UN38.3 ROHS CE
|
|
|
||
|
Enclosure protection rating
|
IP22
|
|
|
||
|
Dimensions(L×W×H)mm
|
482*420*178
|
482*533*226
|
|
||
|
Weight
|
42KG
|
82KG
|
|
||
Why Choose Us
Regional agent
After Sales Response Time
|
Beijing Time
9:00-22:00
|
Weekday
|
Saturday
|
Sunday
|
Chinese Statutory Holidays
|
|
Salesman GFL
|
≤1 Hour
|
≤2 Hour
|
≤ 4 Hour
|
/
|
|
CEO GFL
|
≤1 Hour
|
≤2 Hour
|
≤ 4 Hour
|
≤1 Day
|
Certifications
MDSD UN38.3 CE UL and Other Certificates
FAQ
Q1: Are you a factory or a trader?

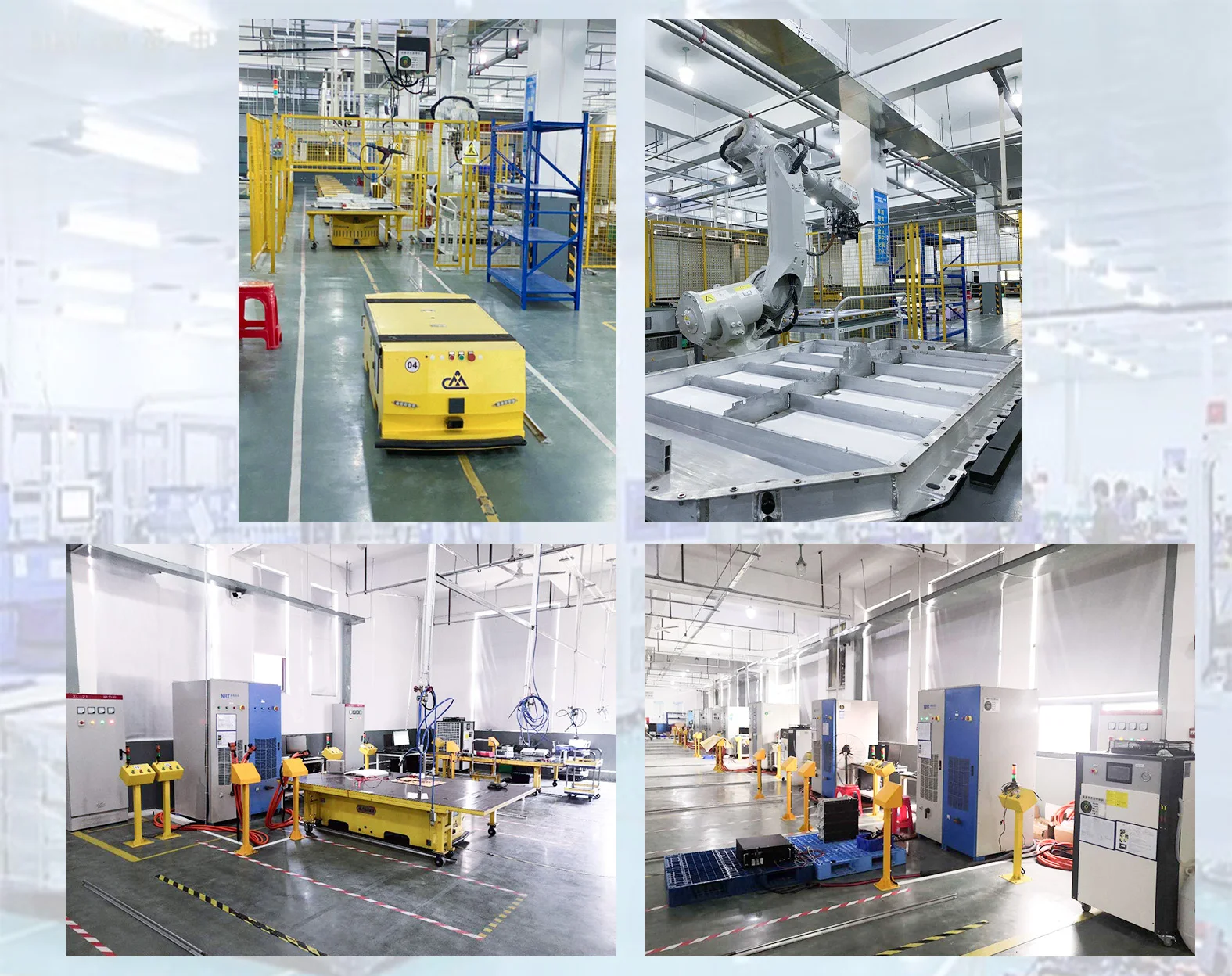

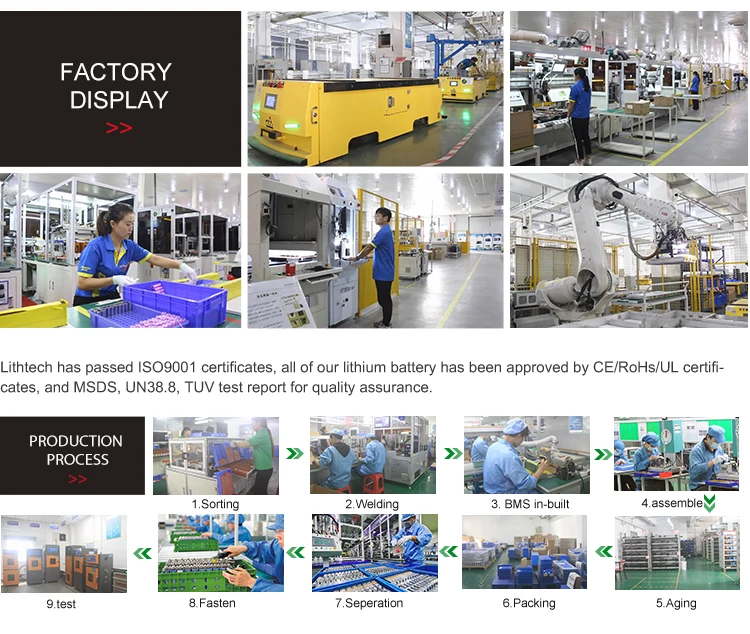

A: Shenzhen Lithtech Energy Co., Ltd. is a professional manufacturer of LiFePO4 and Lithium Ion
battery packs, with 5 advanced production lines and over 300 professional technical R&D personnel and staff，Provide specialized battery customization solutions
battery packs, with 5 advanced production lines and over 300 professional technical R&D personnel and staff，Provide specialized battery customization solutions
Q2:Can you supply the sample and when you can delivery the goods?
A:Yes,and Sample order will delivery in 3-5 days ,mass order usually 15-25 days according to the quantity.
Q3:What kind of certification you have?
A: Products have TUV, IEC, CE, ISO, UL UN38.3 MSDS DNV and other related certifications.
Q4: What about after -sale service?
A: We will offer you 5 year guarantee. If there are any problems , please inform us,we will offer you positive solutions.
Q5: Can I get a lower price if I order large quantities?
A: Yes.
Q6: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always a final inspection before shipment.
